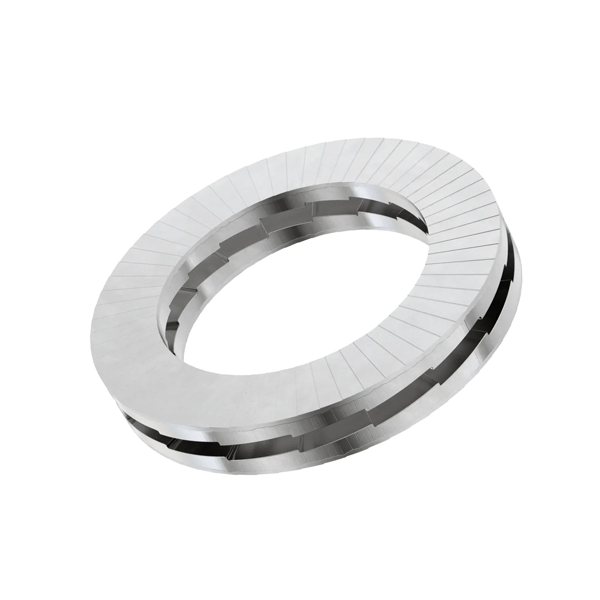

Wedge lock washers DIN 25201

DEFAULT SPECIFICATIONS

Brand HJ Tech
Standard DIN25201
Material 65Mn/SK5/51Crva4/60Si2Mn  /C60S/SS304/SS316
Finish Dacromet/Magni/Geomet  /Zintek/Delta
Size M3-M42/#5-1-1/2"



FEATURES

These lock washers ensure that bolts and screws subjected to transverse loads, chattering or vibrations do not work loose. A joint is also secure at low levels of tension. If the bolt (nut) tends to loosen independently in bolted joints under dynamic stress, the bolt (nut) carries its positive-locking washer with it, the sloped surfaces of which run directly up against the angled surfaces of the counter-washer. In other words, the more a bolted joint tries to loosen itself, the more securely the wedge action of the washer blocks the attempt. Supplied glued together in pairs.

Wedge lock washers DIN 25201

Description:

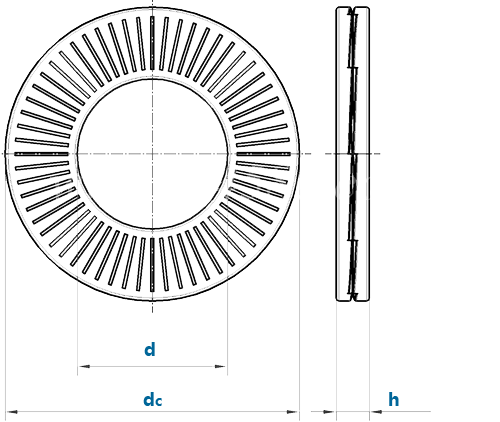

Size d dc Steel h Stainless Steel h weight
Metric Inch max min basic max min basic max min basic max min Steel weight Stainless Steel weight
M3 #5 3.50 3.30 7.0 7.20 6.80 1.8 2.05 1.55 2.2 2.45 1.95 0.30 0.40
M3.5 #6 4.00 3.80 7.6 7.80 7.40 1.8 2.05 1.55 2.20 2.45 1.95 0.40 0.40
M3.5 #6 4.00 3.80 9.0 9.20 8.80 1.8 2.05 1.55 2.20 2.45 1.95 0.60 0.70
M4 #8 4.50 4.30 7.6 7.80 7.40 1.8 2.05 1.55 2.20 2.45 1.95 0.40 0.40
M4 #8 4.50 4.30 9.0 9.20 8.80 1.8 2.05 1.55 2.20 2.45 1.95 0.60 0.70
M5 #10 5.50 5.30 9.0 9.20 8.80 1.8 2.05 1.55 2.20 2.45 1.95 0.50 0.60
M5 #10 5.50 5.30 10.8 11.00 10.60 1.8 2.05 1.55 2.20 2.45 1.95 1.10 1.10
M6 - 6.60 6.40 10.8 11.00 10.60 1.8 2.05 1.55 2.20 2.45 1.95 0.70 0.90
M6 - 6.60 6.40 13.5 13.70 13.30 2.5 2.75 2.25 2.00 2.25 1.75 2.00 1.60
- 1/4” 7.30 7.10 11.5 11.70 11.30 2.5 2.75 2.25 2.20 2.45 1.95 0.80 0.90
- 1/4” 7.30 7.10 13.5 13.70 13.30 2.5 2.75 2.25 2.20 2.45 1.95 1.80 1.50
M8 5/16” 8.80 8.60 13.5 13.70 13.30 2.5 2.75 2.25 2.00 2.25 1.75 1.50 1.20
M8 5/16” 8.80 8.60 16.6 16.80 16.40 2.5 2.75 2.25 2.00 2.25 1.75 2.80 2.30
- 3/8” 10.50 10.10 16.6 16.80 16.40 2.5 2.75 2.25 2.00 2.25 1.75 2.30 1.90
- 3/8” 10.50 10.10 21.0 21.20 20.80 2.5 2.75 2.25 2.00 2.25 1.75 4.80 3.80
M10 - 10.90 10.50 16.6 16.80 16.40 2.5 2.75 2.25 2.00 2.25 1.75 2.20 1.80
M10 - 10.90 10.50 21.0 21.20 20.80 2.5 2.75 2.25 2.00 2.25 1.75 4.70 3.70
M11 7/16” 11.60 11.20 18.5 18.70 18.30 2.5 2.75 2.25 2.20 2.45 1.95 2.90 2.60
M12 - 13.20 12.80 19.5 19.70 19.30 2.5 2.75 2.25 2.00 2.25 1.75 2.90 2.30
M12 - 13.20 12.80 25.4 25.60 25.20 3.4 3.65 3.15 3.00 3.25 2.75 9.30 8.20
- 1/2” 13.70 13.30 19.5 19.70 19.30 2.5 2.75 2.25 2.00 2.25 1.75 2.70 2.20
- 1/2” 13.70 13.30 25.4 25.60 25.20 3.4 3.65 3.15 3.20 3.45 2.95 9.00 8.00
M14 9/16” 15.40 15.00 23.0 23.20 22.80 3.4 3.65 3.15 3.00 3.25 2.75 5.60 4.90
M14 9/16” 15.40 15.00 30.7 30.90 30.50 3.4 3.65 3.15 3.20 3.45 2.95 14.10 13.10
M16 5/8” 17.20 16.80 25.4 25.60 25.20 3.4 3.65 3.15 3.00 3.25 2.75 6.70 5.90
M16 5/8” 17.20 16.80 30.7 30.90 30.50 3.4 3.65 3.15 3.20 3.45 2.95 12.80 11.30
M18 - 19.70 19.30 29.0 29.20 28.80 3.4 3.65 3.15 3.20 3.45 2.95 8.90 8.00
M18 - 19.70 19.30 34.5 34.70 34.30 3.4 3.65 3.15 3.20 3.45 2.95 15.80 15.60
- 3/4” 20.20 19.80 30.7 30.90 30.50 3.4 3.65 3.15 3.20 3.45 2.95 10.50 9.60
- 3/4” 20.20 19.80 39.0 39.20 38.80 3.4 3.65 3.15 3.20 3.45 2.95 22.10 21.00
M20 - 21.60 21.20 30.7 30.90 30.50 3.4 3.65 3.15 3.00 3.25 2.75 9.30 8.20
M20 - 21.60 21.20 39.0 39.20 38.80 3.4 3.65 3.15 3.20 3.45 2.95 20.90 20.60
M22 7/8” 23.60 23.20 34.5 34.70 34.30 3.4 3.65 3.15 3.20 3.45 2.95 12.50 12.30
M22 7/8” 23.60 23.20 42.0 42.20 41.80 4.6 4.85 4.35 3.20 3.45 2.95 31.90 22.20
M24 - 25.50 25.10 39.0 39.20 38.80 3.4 3.65 3.15 3.20 3.45 2.95 17.40 15.90
M24 - 25.50 25.10 48.5 48.70 48.30 4.6 4.85 4.35 3.20 3.45 2.95 45.10 35.00
- 1” 28.10 27.70 39.0 39.30 38.70 3.4 3.65 3.15 3.20 3.20 2.70 15.30 14.20
- 1” 28.10 27.70 48.5 48.80 48.20 4.6 4.85 4.35 3.20 3.20 2.70 42.00 27.90
M27 - 28.60 28.20 42.0 42.30 41.70 5.8 6.05 5.55 6.80 6.80 6.30 31.40 34.50
M27 - 28.60 28.20 48.5 48.80 48.20 5.8 6.05 5.55 6.80 6.80 6.30 52.70 53.40
M30 1 1/8” 31.60 31.20 47.0 47.30 46.70 5.8 6.05 5.55 6.80 6.80 6.30 41.00 44.90
M30 1 1/8” 31.60 31.20 58.5 58.80 58.20 6.6 6.60 6.10 6.80 6.80 6.30 85.80 91.80
