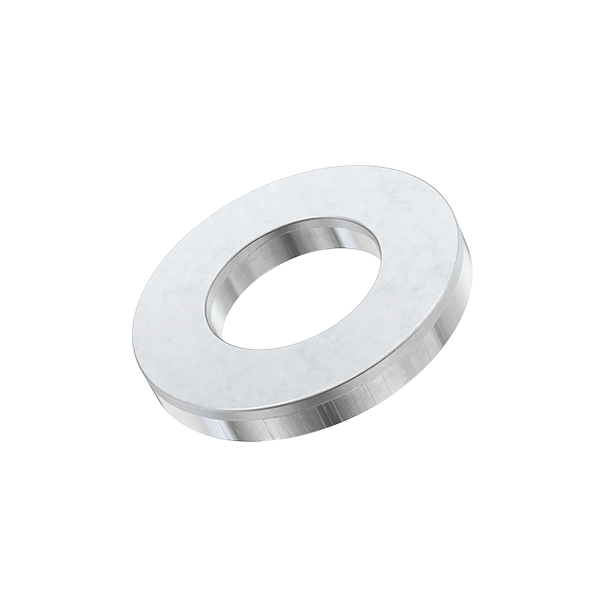

Flat Plain Washers DIN125

DEFAULT SPECIFICATIONS

Brand HJ Tech
Standard DIN125
Material Carbon Steel/Stainless Steel/Aluminum
Finish Plain/Self Colour (S/C)/Black Oxide (Black)/Polished
Size 1.6-130



FEATURES



DIN 125 A Flat Washers, without chamfer, are a thin disk with a concentric hole and are one of the most popular flat washers. When placed under a nut or the head of a screw, the washer increases the bearing surface area and consequently distributes the clamping force over a larger area. That result is desirable when working with soft materials and holes that are too large or oddly shaped to properly support the screw head or nut. "Without chamfer" indicates that the outside edge on one side is not beveled. Steel in 140 HV, 200 HV and 300 HV, either zinc plated or plain finish (which lacks rust protection), and stainless steel can be supplied. Washers with a Hardness Class of 140 HV should only be used with bolts/screws below Class 8.8 and nuts below Class 8; 200 HV washers are suitable for Class 8.8/Class 8 and below; and use 300 HV washers for Class 10.9 bolts/screws and Class 10 nuts and below—they are not suitable for use with Class 12.9/Class 12 fasteners. Washers are listed by their nominal hole size, which indicates screw size, so if you have an M10 screw select an M10 washer. DIN 125 A Flat Washers may be the same as ISO 7089. DIN 433 is a smaller OD and DIN 9021 is a larger OD washer compared to DIN 125 A

Flat Plain Washers DIN125

Description:



Size M d dc h per 1000 units
  M Min Max max min pitch max min kg
1.7 1.6  1.7  1.84  4 3.70  0.3 0.35 0.25  0.024
1.8 1.7 1.8 1.94 4.5 4.20 0.3 0.35 0.25 0.031
2.2 2 2.2 2.34 5 4.70 0.3 0.35 0.25 0.037
2.5 2.3 2.5 2.64 6 5.70 0.5 0.55 0.45 0.092
2.7 2.5 2.7 2.84 6 5.70 0.5 0.55 0.45 0.088
2.8 2.6 2.8 2.94 7 6.64 0.5 0.55 0.45 0.127
3.2 3 3.2 3.38 7 6.64 0.5 0.55 0.45 0.119
3.7 3.5 3.7 3.88 8 7.64 0.5 0.55 0.45 0.155
4.3 4 4.3 4.48 9 8.64 0.8 0.9 0.7 0.308
5.3 5 5.3 5.48 10 9.64 1 1.1 0.9 0.443
6.4 6 6.4 6.62 12 11.57 1.6 1.8 1.4 1.02
7.4 7 7.4 7.62 14 13.57 1.6 1.8 1.4 1.39
8.4 8 8.4 8.62 16 15.57 1.6 1.8 1.4 1.83
10.5 10 10.5 10.77 20 19.48 2 2.2 1.8 3.57
13 12 13 13.27 24 23.48 2.5 2.7 2.3 6.27
15 14 15 15.27 28 27.48 2.5 2.7 2.3 8.62
17 16 17 17.27 30 29.48 3 3.3 2.7 11.3
19 18 19 19.33 34 33.38 3 3.3 2.7 14.7
21 20 21 21.33 37 36.38 3 3.3 2.7 17.2
23 22 23 23.33 39 38.38 3 3.3 2.7 18.3
25 24 25 25.33 44 43.38 4 4.3 3.7 32.3
27 26 27 27.33 50 49.38 4 4.3 3.7 43.7
28 27 28 28.33 50 49.38 4 4.3 3.7 42.3
29 28 29 29.33 50 49.38 4 4.3 3.7 40.9
31 30 31 31.39 56 55.26 4 4.3 3.7 53.6
33 32 33 33.62 60 58.80 5 5.6 4.4 77.4
34 33 34 34.62 60 58.80 5 5.6 4.4 75.3
36 35 36 36.62 66 64.80 5 5.6 4.4 94.3
37 36 37 37.62 66 64.80 5 5.6 4.4 92.1
39 38 39 39.62 72 70.80 6 6.6 5.4 136
40 39 40 40.62 72 70.80 6 6.6 5.4 133
41 40 41 41.62 72 70.80 6 6.6 5.4 130
43 42 43 43.62 78 76.80 7 8 6 183
46 45 46 46.62 85 83.60 7 8 6 220
50 48 50 50.62 92 90.60 8 9 7 294
52 50 52 52.74 92 90.60 8 9 7 284
54 52 54 54.74 98 96.60 8 9 7 330
57 55 57 57.74 105 103.60 9 10 8 431
58 56 58 58.74 105 103.60 9 10 8 425
60 58 60 60.74 110 108.60 9 10 8 472
62 60 62 62.74 110 108.60 9 10 8 458
66 64 66 66.74 115 113.60 9 10 8 492
70 68 70 70.74 120 118.60 10 11 9 586
74 72 74 74.74 125 123.40 10 11 9 626
78 76 78 78.74 135 133.40 10 11 9 749
82 80 82 82.87 140 138.40 12 13.2 10.8 953
87 85 87 87.87 145 143.40 12 13.2 10.8 996
93 90 93 93.87 160 158.40 12 13.2 10.8 1250
98 95 98 98.87 165 163.40 12 13.2 10.8 1300
104 100 104 104.87 175 173.40 14 15.2 12.8 1710
109 105 109 109.87 180 178.40 14 15.2 12.8 1770
114 110 114 114.87 185 183.15 14 15.2 12.8 1830
119 115 119 119.87 200 198.15* 14 15.2 12.8 2230
124 120 124 125 210 208.15 16 17.2 14.8 2830
129 125 129 130 220 218.15 16 17.2 14.8 3130
134 130 134 135 220 218.15 16 17.2 14.8 3000
139 135 139 140 230 228.15 16 17.2 14.8 3310
144 140 144 145 240 238.15 18 19.2 16.8 4090
149 145 149 150 250 248.15 18 19.2 16.8 4470
155 150 155 156 250 248.15 18 19.2 16.8 4270
165 160 165 166 250 248.15 18 19.2 16.8 3910
