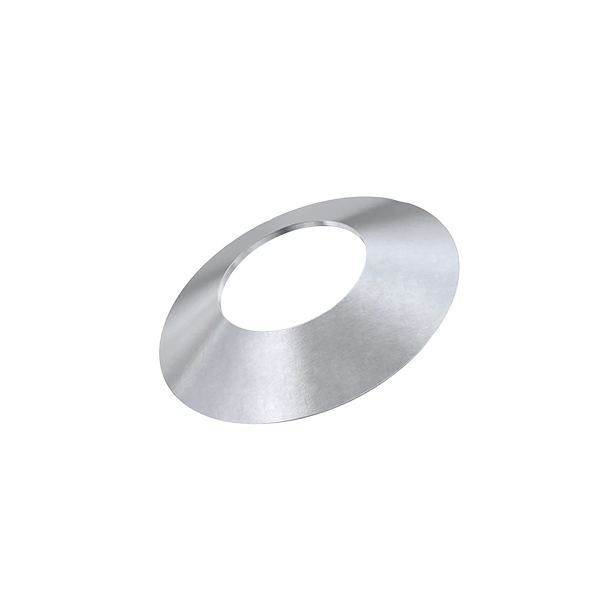

Disc Spring Washer DIN2093A

DEFAULT SPECIFICATIONS

Brand HJ Tech
Standard DIN2093
Material 65Mn/SK5/51Crva4/60Si2Mn  /C60S/SS304/SS316
Finish Zinc/Black/Dacromet/Magni  /Geomet/Zintek/Delta
Size M8-M250



FEATURES

DIN 2093 springs are conical washers with elastic properties. They are commonly known as disc springs but sometimes they are called belleville washers. These springs are manufactured according to the specifications of DIN 2093 standard, which establishes all the characteristics these pieces have to meet.

The main feature of DIN 2093 disc springs is the capacity to generate high spring load compared to traditional helical springs, in small enclosures and with short displacements. These spring washers are under small deflection when submitted to large loads. Serial or parallel assembly allows us to obtain higher defections and loads.



Disc Spring Washer DIN2093A

Description:



Size d1 d2 t t1 h1 h washer type
  min(H12) max max(h12) min
8 4.2 4.32 8 7.85 0.4 - 0.2 0.6 1
10 5.2 5.32 10 9.85 0.5 - 0.25 0.75 1
12.5 6.2 6.35 12.5 12.32 0.7 - 0.3 1 1
14 7.2 7.35 14 13.82 0.8 - 0.3 1.1 1
16 8.2 8.35 16 15.82 0.9 - 0.35 1.25 1
18 9.2 9.35 18 17.82 1 - 0.4 1.4 1
20 10.2 10.38 20 19.79 1.1 - 0.45 1.55 1
22.5 11.2 11.38 22.5 22.29 1.25 - 0.5 1.75 2
25 12.2 12.38 25 24.79 1.5 - 0.55 2.05 2
28 14.2 14.38 28 27.79 1.5 - 0.65 2.15 2
31.5 16.3 16.48 31.5 31.25 1.75 - 0.7 2.45 2
35.5 18.3 18.51 35.5 35.25 2 - 0.8 2.8 2
40 20.4 20.61 40 39.75 2.25 - 0.9 3.15 2
45 22.4 22.61 45 44.75 2.5 - 1 3.5 2
50 25.4 25.61 50 49.75 3 - 1.1 4.1 2
56 28.5 28.71 56 55.7 3 - 1.3 4.3 2
63 31 31.25 63 62.7 3.5 - 1.4 4.9 2
71 36 36.25 71 70.7 4 - 1.6 5.6 2
80 41 41.25 80 79.7 5 - 1.7 6.7 1
90 46 46.25 90 89.65 5 - 2 7 2
100 51 51.3 100 99.65 6 - 2.2 8.2 2
112 57 57.3 112 111.65 6 - 2.5 8.5 2
125 64 64.3 125 124.6 8 7.5 2.6 10.6 3
140 72 72.3 140 139.6 8 7.5 3.2 11.2 3
160 82 82.35 160 159.6 10 9.4 3.5 13.5 1
180 92 92.35 180 179.6 10 9.4 4 14 3
200 102 102.35 200 199.54 12 11.25 4.2 16.2 3
225 112 112.35 225 224.54 12 11.25 5 17 3
250 127 127.4 250 249.54 14 13.1 5.6 19.6 3
