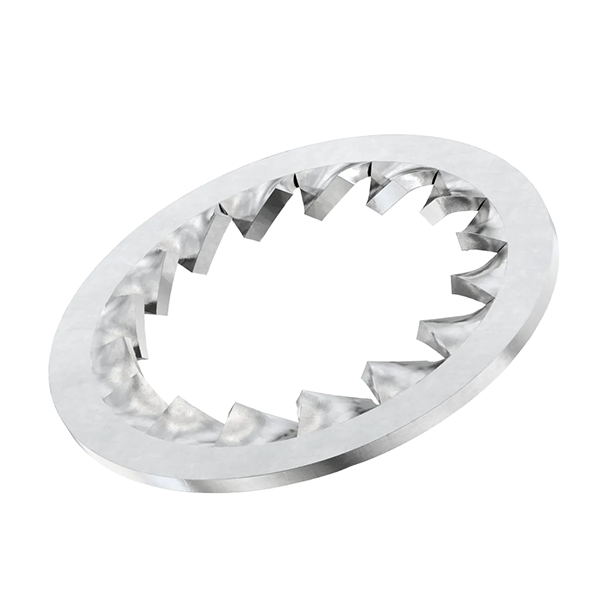

Internal Serrated Lock Washer DIN6798J

DEFAULT SPECIFICATIONS

Brand HJ Tech
Standard DIN6798J
Material 65Mn/50#  SS304/SS316/SS420
Finish

Zinc/Black
Size M3-M36



FEATURES

DIN 6798 J Internal Serrated Lock Washers have twisted tabs that create serrations around the inside circumference of the washer and contact the bearing surface of the screw or nut and the mating surface. Recommended for use with small diameter heads, like cheese head, and when the prongs and surface marks they create should be hidden but avoid oversized holes because the prongs may not fully contact the mating surface. Supplied in spring steel with a phosphate finish and zinc plated and in stainless steel. Select the washer size, which is its nominal hole size, to match the screw size (for example, an M8 washer matches an M8 screw). They may be specified as DIN 6798 Type J.

Internal Serrated Lock Washer DIN6798J

Description:

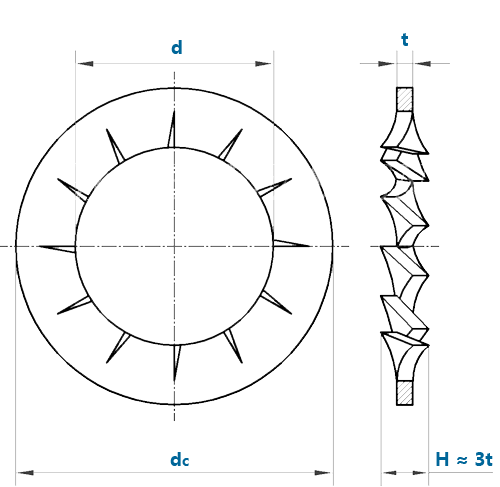

  d dc t Number of Teeth weight For Thread
Size min max max min   min kg
1.7 1.7 1.84 3.6 3.3 7 0.3 0.02 M1.6
2.2 2.2 2.34 4.5 4.2 7 0.3 0.03 M2
2.7 2.7 2.84 5.5 5.2 7 0.4 0.045 M2.5
3.2 3.2 3.38 6 5.7 7 0.4 0.06 M3
3.7 3.7 3.88 7 6.64 8 0.5 0.11 M3.5
4.3 4.3 4.48 8 7.64 8 0.5 0.14 M4
5.3 5.3 5.48 10 9.64 8 0.6 0.28 M5
6.4 6.4 6.62 11 10.57 9 0.7 0.36 M6
7.4 7.4 7.62 12.5 12.07 10 0.8 0.5 M7
8.4 8.4 8.62 15 14.57 10 0.8 0.8 M8
10.5 10.5 10.77 18 17.57 12 0.9 1.25 M10
13 13 13.27 20.5 19.98 12 1 1.6 M12
15 15 15.27 24 23.48 14 1 2.3 M14
17 17 17.27 26 25.48 14 1.2 2.9 M16
19 19 19.33 30 29.48 14 1.4 5 M18
21 21 21.33 33 32.38 16 1.4 6 M20
23 23 23.33 36 35.38 16 1.5 7.5 M22
25 25 25.33 38 37.38 16 1.5 8 M24
28 28 28.33 44 43.38 18 1.6 12 M27
31 31 31.39 48 47.38 18 1.6 14 M30
