Retaining rings for shafts DIN 471

Retaining rings for shafts DIN 471

DEFAULT SPECIFICATIONS

Brand	HJ Tech
Standard	DIN471
Material	65Mn/50# SS301/SS304/SS316
Finish	Zinc/Black
Size	M8-M300

FEATURES

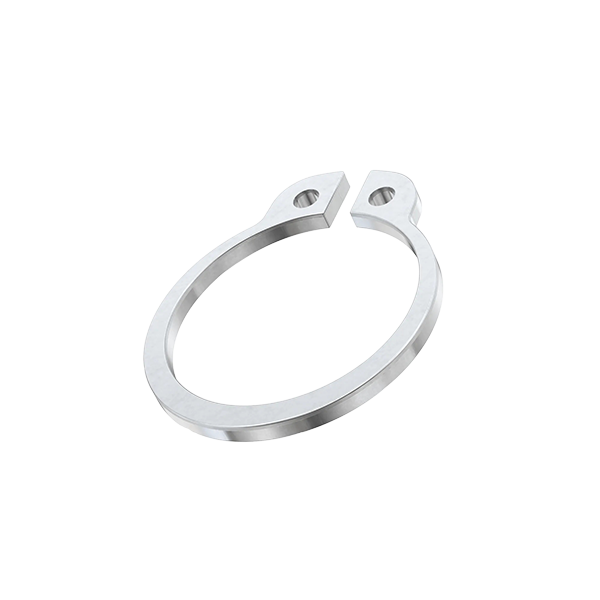

DIN 471 circlips are retaining rings mounted in a groove on a shaft OD. They withstand high axial forces between machine elements (e.g. bearings) and the groove in which the ring is mounted.

Description:

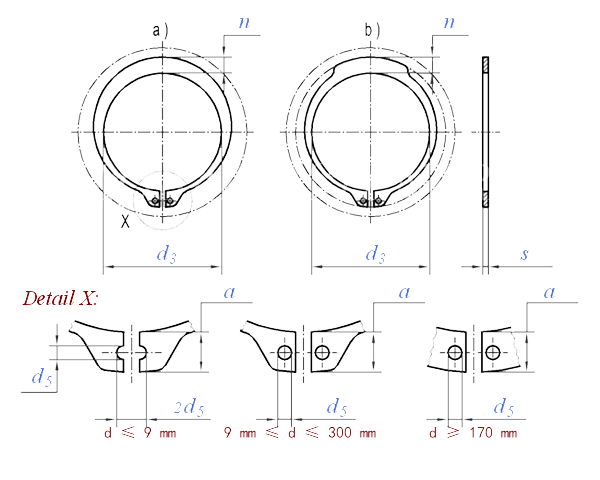

Size	s		d3			a	n	d5	weight
Metric	max	min	baisc	max	min	min	≈	min	kg
3	0.4	0.35	2.7	2.74	2.55	1.9	0.8	1	0.017
4	0.4	0.35	3.7	3.74	3.55	2.2	0.9	1	0.022
5	0.6	0.55	4.7	4.74	4.55	2.5	1.1	1	0.066
6	0.7	0.65	5.6	5.64	5.45	2.7	1.3	1.2	0.084
7	0.8	0.75	6.5	6.56	6.32	3.1	1.4	1.2	0.121
8	0.8	0.75	7.4	7.46	7.22	3.2	1.5	1.2	0.158
9	1	0.94	8.4	8.46	8.22	3.3	1.7	1.2	0.3
10	1	0.94	9.3	9.4	8.94	3.3	1.8	1.5	0.34
11	1	0.94	10.2	10.3	9.84	3.3	1.8	1.5	0.41
12	1	0.94	11	11.1	10.64	3.3	1.8	1.7	0.5
13	1	0.94	11.9	12	11.54	3.4	2	1.7	0.53
14	1	0.94	12.9	13	12.54	3.5	2.1	1.7	0.64
15	1	0.94	13.8	13.9	13.44	3.6	2.2	1.7	0.67
16	1	0.94	14.7	14.8	14.34	3.7	2.2	1.7	0.7
17	1	0.94	15.7	15.8	15.34	3.8	2.3	1.7	0.82
18	1.2	1.14	16.5	16.6	16.14	3.9	2.4	2	1.11
19	1.2	1.14	17.5	17.6	17.14	3.9	2.5	2	1.22
20	1.2	1.14	18.5	18.63	18.08	4	2.6	2	1.3
21	1.2	1.14	19.5	19.63	19.08	4.1	2.7	2	1.42
22	1.2	1.14	20.5	20.63	20.08	4.2	2.8	2	1.5
24	1.2	1.14	22.2	22.41	21.78	4.4	3	2	1.77
25	1.2	1.14	23.2	23.41	22.78	4.4	3	2	1.9
26	1.2	1.14	24.2	24.41	23.78	4.5	3.1	2	1.96
28	1.5	1.44	25.9	26.11	25.48	4.7	3.2	2	2.92
29	1.5	1.44	26.9	27.11	26.48	4.8	3.4	2	3.2
30	1.5	1.44	27.9	28.11	27.48	5	3.5	2	3.31
32	1.5	1.44	29.6	29.81	29.18	5.2	3.6	2.5	3.54
34	1.5	1.44	31.5	31.75	31	5.4	3.8	2.5	3.8
35	1.5	1.44	32.2	32.45	31.7	5.6	3.9	2.5	4
36	1.75	1.69	33.2	33.45	32.7	5.6	4	2.5	5
38	1.75	1.69	35.2	35.45	34.7	5.8	4.2	2.5	5.62
40	1.75	1.69	36.5	36.89	35.6	6	4.4	2.5	6.03
42	1.75	1.69	38.5	38.89	37.6	6.5	4.5	2.5	6.5
45	1.75	1.69	41.5	41.89	40.6	6.7	4.7	2.5	7.5
48	1.75	1.69	44.5	44.89	43.6	6.9	5	2.5	7.9
50	2	1.93	45.8	46.19	44.9	6.9	5.1	2.5	10.2
52	2	1.93	47.8	48.19	46.9	7	5.2	2.5	11.1
55	2	1.93	50.8	51.26	49.7	7.2	5.4	2.5	11.4
56	2	1.93	51.8	52.26	50.7	7.3	5.5	2.5	11.8
58	2	1.93	53.8	54.26	52.7	7.3	5.6	2.5	12.6
60	2	1.93	55.8	56.26	54.7	7.4	5.8	2.5	12.9
62	2	1.93	57.8	58.26	56.7	7.5	6	2.5	14.3
63	2	1.93	58.8	59.26	57.7	7.6	6.2	2.5	15.9
65	2.5	2.43	60.8	61.26	59.7	7.8	6.3	3	18.2
68	2.5	2.43	63.5	63.96	62.4	8	6.5	3	21.8
70	2.5	2.43	65.5	65.96	64.4	8.1	6.6	3	22
72	2.5	2.43	67.5	67.96	66.4	8.2	6.8	3	22.5
75	2.5	2.43	70.5	70.96	69.4	8.4	7	3	24.6
78	2.5	2.43	73.5	73.96	72.4	8.6	7.3	3	26.2
80	2.5	2.43	74.5	74.96	73.4	8.6	7.4	3	27.3
82	2.5	2.43	76.5	76.96	75.4	8.7	7.6	3	31.2
85	3	2.92	79.5	79.96	78.4	8.7	7.8	3.5	36.4
88	3	2.92	82.5	83.04	81.2	8.8	8	3.5	41.2
90	3	2.92	84.5	85.04	83.2	8.8	8.2	3.5	44.5
95	3	2.92	89.5	90.04	88.2	9.4	8.6	3.5	49
100	3	2.92	94.5	95.04	93.2	9.6	9	3.5	53.7
105	4	3.9	98	98.54	96.7	9.9	9.3	3.5	80
110	4	3.9	103	103.54	101.7	10.1	9.6	3.5	82
115	4	3.9	108	108.54	106.7	10.6	9.8	3.5	84
120	4	3.9	113	113.54	111.7	11	10.2	3.5	86
125	4	3.9	118	118.54	116.7	11.4	10.4	4	90
130	4	3.9	123	123.63	121.5	11.6	10.7	4	100
135	4	3.9	128	128.63	126.5	11.8	11	4	104
140	4	3.9	133	133.63	131.5	12	11.2	4	110
145	4	3.9	138	138.63	136.5	12.2	11.5	4	115
150	4	3.9	142	142.63	140.5	13	11.8	4	120
155	4	3.9	146	146.63	144.5	13	12	4	135
160	4	3.9	151	151.63	149.5	13.3	12.2	4	150
165	4	3.9	155.5	156.13	154	13.5	12.5	4	160
170	4	3.9	160.5	161.13	159	13.5	12.9	4	170
175	4	3.9	165.5	166.13	164	13.5	12.9	4	180
180	4	3.9	170.5	171.13	168.9	14.2	13.5	4	190
185	4	3.9	175.5	176.13	174	14.2	13.5	4	200
190	4	3.9	180.5	181.22	178.8	14.2	14	4	210
195	4	3.9	185.5	186.22	183.8	14.2	14	4	220
200	4	3.9	190.5	191.22	188.8	14.2	14	4	230
210	5	4.88	198	198.72	196.3	14.2	14	4	248
220	5	4.88	208	208.72	206.3	14.2	14	4	265
230	5	4.88	218	218.72	216.3	14.2	14	4	290
240	5	4.88	228	228.72	226.3	14.2	14	4	310
250	5	4.88	238	238.72	236.3	14.2	14	4	335
260	5	4.88	245	245.72	243.3	16.2	16	5	355
270	5	4.88	255	255.81	253	16.2	16	5	375
280	5	4.88	265	265.81	263	16.2	16	5	398
290	5	4.88	275	275.81	273	16.2	16	5	418
300	5	4.88	285	285.81	283	16.2	16	5	440
