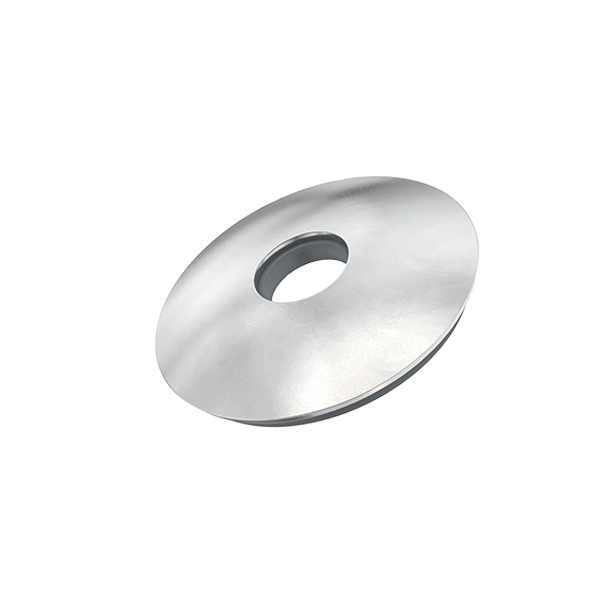

EPDM Bonded Sealing Washers

DEFAULT SPECIFICATIONS

Brand HJ Tech
Standard EPDM
Material Carbon Steel/Stainless Steel+EPDM
Finish Zinc/Polished
Size #4-1/2"



FEATURES

Sealing washers have a layer of Neoprene bonded to a raised metal washer to form a seal that is strong while also being soft and resilient. They can be used with fragile materials and to provide extra cushioning under a nut or the head of a bolt or screw. Sealing washers are effective in stopping leaks by sealing bolted joints.



EPDM Bonded Sealing Washers

Description:

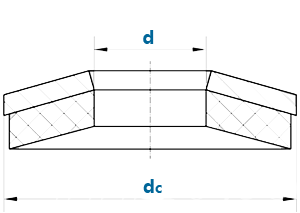

  d dc
Size min max min max
#4 .147 .168 .368 .382
#6 .198 .218 .368 .382
#8 .198 .218 .493 .507
#10 .198 .218 .493 .507
#12 .226 .246 .547 .558
1/4 .257 .277 .622 .635
5/16 .344 .364 .741 .755
3/8 .395 .415 .741 .755
7/16 .446 .467 .977 .991
1/2 .541 .561 .977 .991
