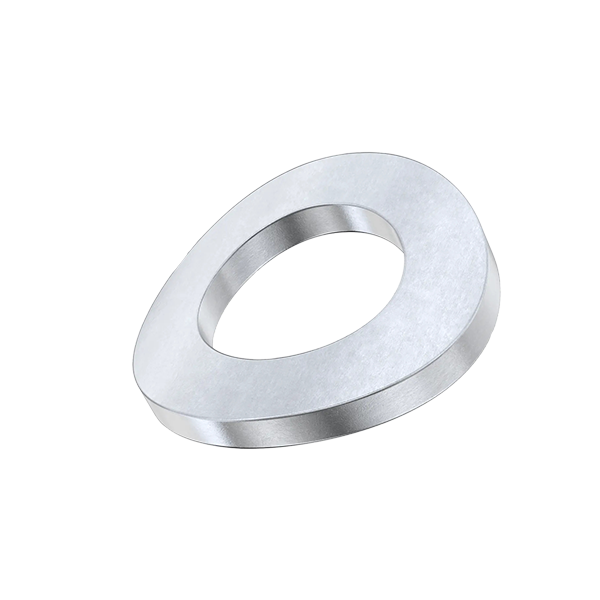

Curved Spring Washers DIN137A

DEFAULT SPECIFICATIONS

Brand HJ Tech
Standard DIN137A
Material 65Mn/70#  SS304/SS316/Brass
Finish Zinc/Black/HDG
Size M3-M30



FEATURES

DIN 137 A Curved Spring Washers are bowed thin metal washers with a spring rate that is roughly linear between 10% and 80% of their available deflection. Designed for light thrust loads, they provide the most deflection with the least compressive force when compared to other spring washers. As they are loaded (compressed), their outside diameter (OD) will increase and their inside diameter (ID) will decrease so plan for the dimensional changes. They provide an axial preload between two surfaces, whether static or rotating, such as reducing shaft end play. Spring steel, zinc plated and plain finish (which lacks rust protection), stainless steel and spring bronze are available. Size relates to nominal hole size and should be matched to screw size; for example, an M8 washer is used with an M8 screw. DIN 137 B is recommended for new designs.

Curved Spring Washers DIN137A

Description:

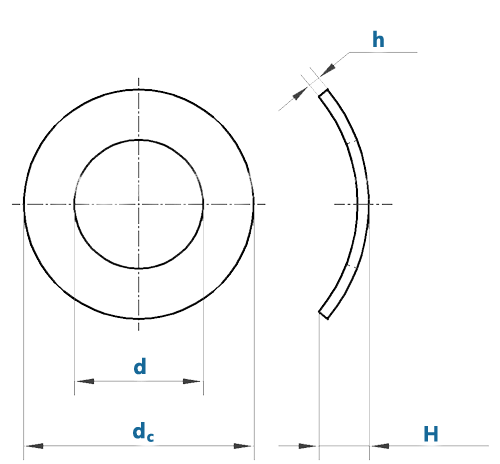

Size d dc h H Weight
Metric min max baisc max min baisc max min min max kg
1 1.1 1.35 2.5 2.8 2.2 0.2 0.22 0.18 0.35 0.7 0.006
1.2 1.3 1.55 3 3.3 2.7 0.2 0.22 0.18 0.35 0.7 0.009
1.4 1.5 1.75 3 3.3 2.7 0.25 0.27 0.23 0.4 0.8 0.01
1.7 1.8 2.05 4 4.37 3.625 0.25 0.27 0.23 0.45 0.9 0.02
1.8 1.9 2.15 4 4.375 3.625 0.25 0.27 0.23 0.45 0.9 0.02
2 2.2 2.45 4.5 4.875 4.125 0.3 0.33 0.27 0.5 1 0.028
2.3 2.5 2.75 5 5.375 4.625 0.3 0.33 0.27 0.5 1 0.035
2.6 2.8 3.05 5.5 5.875 5.125 0.3 0.33 0.27 0.55 1.1 0.041
3 3.2 3.5 6 6.375 5.625 0.4 0.45 0.35 0.65 1.3 0.063
3.5 3.7 4 7 7.45 6.55 0.4 0.45 0.35 0.7 1.4 0.088
4 4.3 4.6 8 8.45 7.55 0.5 0.55 0.45 0.8 1.6 0.14
5 5.3 5.6 10 10.45 9.55 0.5 0.55 0.45 0.9 1.8 0.222
6 6.4 6.76 11 11.55 10.45 0.5 0.55 0.45 1.1 2.2 0.247
7 7.4 7.76 12 12.55 11.45 0.5 0.55 0.45 1.2 2.4 0.265
8 8.4 8.76 15 15.55 14.45 0.5 0.55 0.45 1.7 3.4 0.476
10 10.5 10.93 18 18.55 17.45 0.8 0.86 0.74 2 4 1.05

Download

Curved Spring Washers DIN137A

PDF
