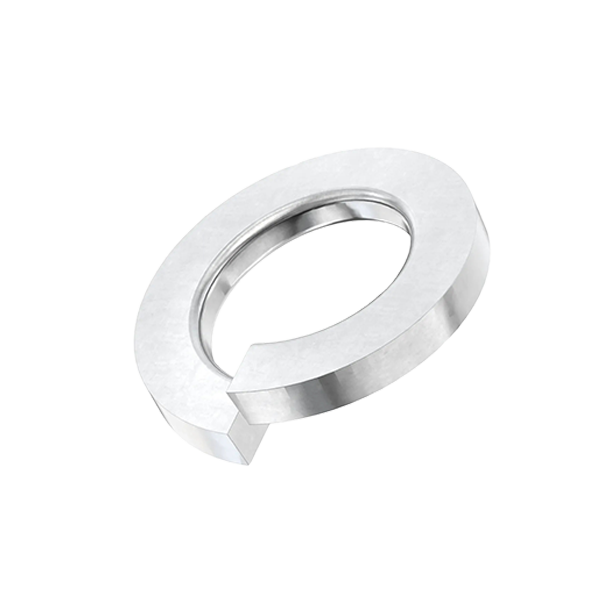

Spring lock washers DIN127B

DEFAULT SPECIFICATIONS

Brand HJ Tech
Standard DIN127B
Material 65Mn/50#/70#  SS304/SS316/Brass
Finish

Zinc/Black/HDG
Size M3-M36



FEATURES

DIN 127 B Split Lock Washers Flat Ends are split helical spring washers that are said to provide a spring-like take-up action and preload to resist thrust-induced loosening; these washers are designed for bolted joints with right-hand threads. When installed under the head they should be used with large heads like hex, pan and round. "Flat ends" means the bearing surface of the washer will be flat when fully compressed. For small diameter heads like socket head cap and cheese head screws, use high collar split lock washers. Available in spring steel, zinc plated and plain finish (susceptible to rust), stainless steel and spring bronze. The size of a washer is specified as its nominal hole size and should match the screw size (to illustrate, an M6 washer matches an M6 screw). DIN 127 B Split Lock Washers have a larger OD and are thinner than DIN 7980. DIN 128 A is recommended for new designs.

Spring lock washers DIN127B

Description:

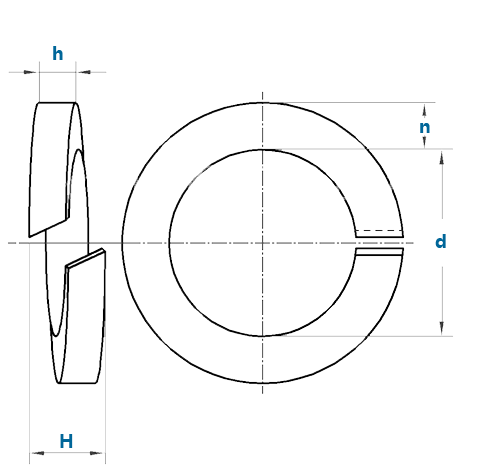

Size d n h H Weight
Metric min max baisc max min baisc max min min max kg
Φ2 2.1 2.4 0.9 1 0.8 0.5 0.6 0.4 1 1.2 0.033
Φ2.2 2.3 2.6 1 1.1 0.9 0.6 0.7 0.5 1.2 1.4 0.050
Φ2.5 2.6 2.9 1 1.1 0.9 0.6 0.7 0.5 1.2 1.4 0.053
Φ3 3.1 3.4 1.3 1.4 1.2 0.8 0.9 0.7 1.6 1.9 0.11
Φ3.5 3.6 3.9 1.3 1.4 1.2 0.8 0.9 0.7 1.6 1.9 0.12
Φ4 4.1 4.4 1.5 1.6 1.4 0.9 1 0.8 1.8 2.1 0.18
Φ5 5.1 5.4 1.8 1.9 1.7 1.2 1.3 1.1 2.4 2.8 0.36
Φ6 6.1 6.5 2.5 2.65 2.35 1.6 1.7 1.5 3.2 3.8 0.83
Φ7 7.1 7.5 2.5 2.65 2.35 1.6 1.7 1.5 3.2 3.8 0.93
Φ8 8.1 8.5 3 3.15 2.85 2 2.1 1.9 4 4.7 1.6
Φ10 10.2 10.7 3.5 3.7 3.3 2.2 2.35 2.05 4.4 5.2 2.53
Φ12 12.2 12.7 4 4.2 3.8 2.5 2.65 2.35 5 5.9 3.82
Φ14 14.2 14.7 4.5 4.7 4.3 3 3.15 2.85 6 7.1 6.01
Φ16 16.2 17 5 5.2 4.8 3.5 3.7 3.3 7 8.3 8.91
Φ18 18.2 19 5 5.2 4.8 3.5 3.7 3.3 7 8.3 9.73
Φ20 20.2 21.2 6 6.2 5.8 4 4.2 3.8 8 9.4 15.2
Φ22 22.5 23.5 6 6.2 5.8 4 4.2 3.8 8 9.4 16.5
Φ24 24.5 25.5 7 7.25 6.75 5 5.2 4.8 10 11.8 26.2
Φ27 27.5 28.5 7 7.25 6.75 5 5.2 4.8 10 11.8 28.7
Φ30 30.5 31.7 8 8.25 7.75 6 6.2 5.8 12 14.2 44.3
Φ36 36.5 37.7 10 10.25 9.75 6 6.2 5.8 12 14.2 67.3
Φ39 39.5 40.7 10 10.25 9.75 6 6.2 5.8 12 14.2 71.7
Φ42 42.5 43.7 12 12.25 11.75 7 7.25 6.75 14 16.5 111
Φ45 45.5 46.7 12 12.25 11.75 7 7.25 6.75 14 16.5 117
Φ48 49 50.5 12 12.25 11.75 7 7.25 6.75 14 16.5 123
Φ52 53 54.5 14 14.25 13.75 8 8.25 7.75 16 18.9 182
Φ56 57 58.5 14 14.25 13.75 8 8.25 7.75 16 18.9 193
Φ60 61 62.5 14 14.25 13.75 8 8.25 7.75 16 18.9 203
Φ64 65 66.5 14 14.25 13.75 8 8.25 7.75 16 18.9 218
Φ68 69 70.5 14 14.25 13.75 8 8.25 7.75 16 18.9 228
Φ72 73 74.5 14 14.25 13.75 8 8.25 7.75 16 18.9 240
Φ80 81 82.5 14 14.25 13.75 8 8.25 7.75 16 18.9 262
Φ90 91 92.5 14 14.25 13.75 8 8.25 7.75 16 18.9 290
Φ100 101 102.5 14 14.25 13.75 8 8.25 7.75 16 18.9 318
