Internal Tooth Lock Washers

DEFAULT SPECIFICATIONS

Brand HJ Tech
Standard
Material Carbon Steel/Stainless Steel/Aluminum
Finish Plain/Self Colour (S/C)/Black Oxide (Black)/Polished
Size #6-1"



FEATURES



Internal Tooth Lock Washers create a ratchet action by biting into the nut or screw head and the surface it contacts. The "internal" type work best with small screw heads, such as Fillister, and when the teeth—and the surface marks they create—need to be hidden for appearance reasons. Because the teeth must make contact with the mating surface, do not use with oversized holes.

Internal Tooth Lock Washers

Description:

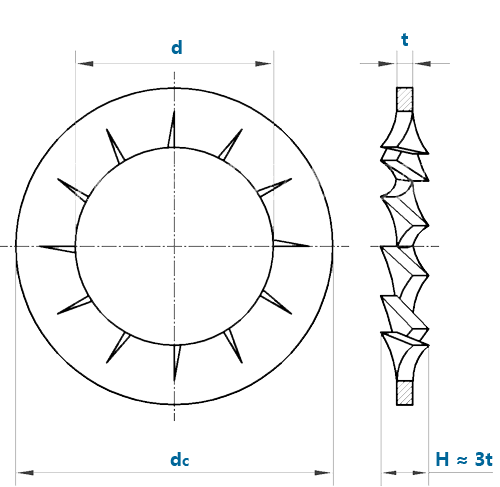

size d dc t
  max min max min max min
#2 .095 .089 .200 .175 .016 .010
#3 .109 .102 .232 .215 .016 .010
#4 .123 .115 .270 .245 .018 .012
#5 .136 .129 .280 .255 .020 .014
#6 .150 .141 .295 .275 .022 .016
#8 .176 .168 .340 .325 .023 .018
#10 .204 .195 .381 .365 .024 .018
#12 .231 .221 .410 .394 .027 .020
1/4 .267 .256 .478 .460 .028 .023
5/16 .332 .320 .610 .594 .034 .028
3/8 .398 .384 .692 .670 .040 .032
7/16 .464 .448 .789 .740 .040 .032
1/2 .530 .512 .900 .867 .045 .037
9/16 .596 .576 .985 .957 .045 .037
5/8 .663 .640 1.071 1.045 .050 .042
3/4 .795 .769 1.245 1.220 .055 .047
7/8 .927 .894 1.410 1.364 .060 .052
1 1.060 1.019 1.637 1.590 0.67 .059
1-1/8 1.192 1.144 1.830 1.799 .067 .059
1-1/4 1.325 1.275 1.975 1.921 .067 .059
