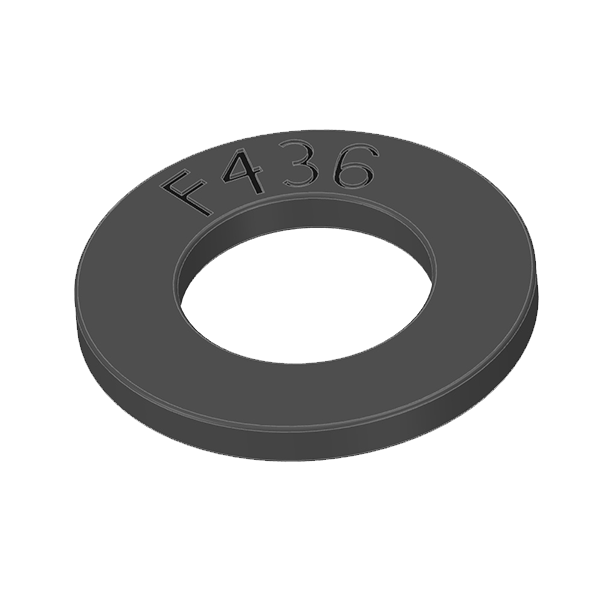

ASTM F436M HARDENED WASHER

ASTM F436M HARDENED WASHER

Technical specifications

Materials: 45#/50#/40Cr
Finish: Zinc Plated/Black/Hot dip galvanized
Size: M3-M42

FEATURES

Washers provide a smooth bearing surface and are used under the head of a bolt and/or a nut. The chemical, mechanical, and dimensional requirements for hardened washers are covered under the ASTM specification F436. These washers are through hardened or carburized to add strength, but are physically smaller than a standard F844 flat washer. They are the recommended washer for any fastener other than a low carbon steel bolt.

Description:

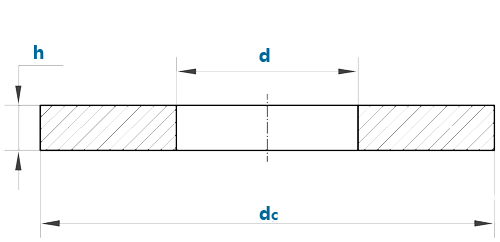

Size	d		dc		h		weight
	max	min	max	min	max	min
12	14.4	14	26	25.7	4.6	3.1	12.66
14	16.4	16	29	28.7	4.6	3.1	15.279
16	18.5	18	33	32.4	4.6	3.1	19.76
18	20.5	20	37	36.4	4.6	3.1	24.8
20	22.5	22	41	40.4	4.6	3.1	30.405
22	24.5	24	43	42.4	4.6	3.4	33.56
24	26.5	26	49	48.4	4.6	3.4	45.01
27	30.5	30	55	54.1	4.6	3.4	55.18
30	33.6	33	59	58.1	4.6	3.4	61.97
33	36.6	36	65	64.1	4.6	3.4	75.52
36	39.6	39	71	70.1	4.6	3.4	90.4
39	43.6	42.3	76	76.1	5.2	4.3	157.26
42	45.6	45	83	81.8	7.2	4.6	183.14
48	50.5	52	94	92.5	7.2	4.6	230.1
56	62.7	62	106	104.8	8.7	6.1	347.22
64	70.7	70	117	115.8	8.7	6.1	412
72	78.7	78	129	127.5	8.7	6.1	493.8
80	86.9	86	141	139.5	8.7	6.1	528.96
90	96.9	96	158	156.6	8.7	6.1	733.49
100	107.9	107	175	173.5	8.7	6.1	891.56
