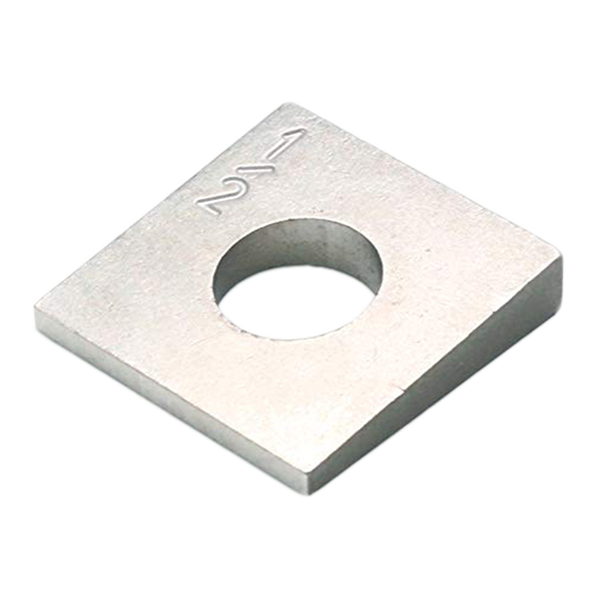

F436 Bevel Washer

Technical specifications

  • Materials: 45#/50#/40Cr
  • Finish: Zinc Plated/Black/Hot dip galvanized
  • Size: 1/2”-1-1/2



FEATURES



F436 Bevel Washer

Description:



Size d1 s t n
  Basic max min min tickness min
1/2 13.4874 0.79502 0 44.45 7.9502 11.1252
5/8 17.4752 0.79502 0 44.45 7.9502 13.8938
3/4 20.6502 0.79502 0 44.45 7.9502 16.6624
7/8 23.8252 0.79502 0 44.45 7.9502 19.4564
1 28.575 0.79502 0 44.45 7.9502 22.225
1-1/8 31.75 0.79502 0 57.15 7.9502 24.9936
1-1/4 34.925 0.79502 0 57.15 7.9502 27.7876
1-3/8 38.1 0.79502 0 57.15 7.9502 30.5562
1-1/2 41.275 0.79502 0 57.15 7.9502 33.3502
