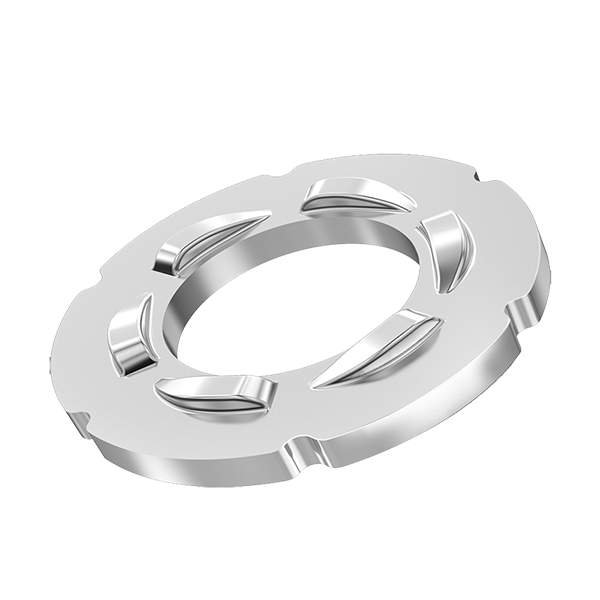

EN 14399-9 DTI

Technical specifications

  • Materials: 50#/45#/40Cr
  • Finish: Zinc Plated/Black/Hot dip galvanized
  • Size: M12-M36





EN 14399-9 DTI

Description:

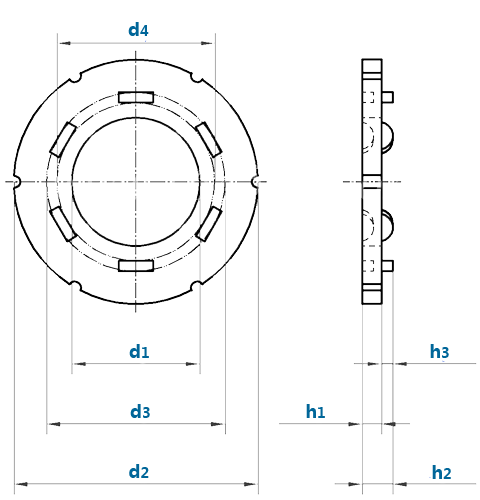

Size d1 d2 h1 h2 h3 d3 d4
  Min Max Min Max Min Max Min Max min
M12 12.75 12.85 26 32.5 2.5 5.5 0.8 20 13.85
M16 16.75 16.85 35 36.8 3 6 0.8 25 17.85
M20 20.95 21.05 41 46 3.5 6.5 0.8 29 22.05
M22 23.05 23.15 46.5 50.6 4 7 0.8 33 24.15
M24 25.15 25.25 50 55.2 4 7 0.8 38 26.25
M27 28.3 28.4 54 62.1 4 7 0.8 43 29.4
M30 31.45 31.55 59 69 4 7 0.8 46.5 32.55
M36 37.75 37.85 78 83 4 7.5 0.8 56 38.85
