SAE Through Hard Washer

Technical specifications

  • Materials: 50#/45#/40Cr
  • Finish: Zinc Plated/Black/Hot dip galvanized
  • Size: #6-2



FEATURES



SAE Through Hard Washer

Description:

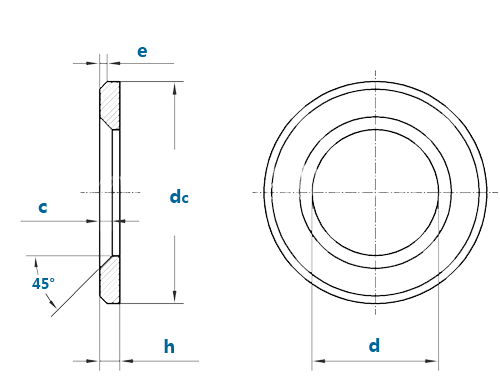

Size d dc h per 1000 units
  Min Max min max min max kg
6 3.84 4.17 9.40 9.91 0.91 1.65 0.66
8 4.65 4.98 11.00 11.51 0.91 1.65 0.88
10 5.44 5.77 12.57 13.08 0.91 1.65 1.12
12 6.22 6.73 14.15 14.66 1.30 2.03 1.81
1/4 7.01 7.52 15.75 16.26 1.30 2.03 2.21
5/16 8.61 9.12 17.30 17.86 1.30 2.03 2.51
3/8 10.19 10.64 20.45 21.01 1.30 2.03 3.46
7/16 11.79 12.29 23.24 23.80 1.30 2.03 4.39
1/2 13.36 13.87 26.80 27.74 1.88 3.07 9.02
9/16 14.96 15.47 29.18 30.12 1.88 3.07 10.44
5/8 16.48 17.42 33.15 34.09 2.74 3.71 17.7
3/4 20.45 21.39 37.13 38.07 3.10 4.50 24.15
7/8 23.65 24.59 44.27 45.21 3.45 4.50 36.39
1 26.80 27.74 50.62 51.56 3.45 4.50 47.56
1-1/8 31.57 32.51 56.97 57.91 3.71 4.50 59.61
1-1/4 34.75 35.69 63.32 64.26 3.45 4.50 71.62
1-1/2 41.10 42.04 76.02 76.96 3.45 4.50 103.77
1-3/4 47.45 48.39 85.55 86.49 4.52 5.11 155.17
2 53.80 54.74 95.20 96.01 4.52 5.11 187.68
