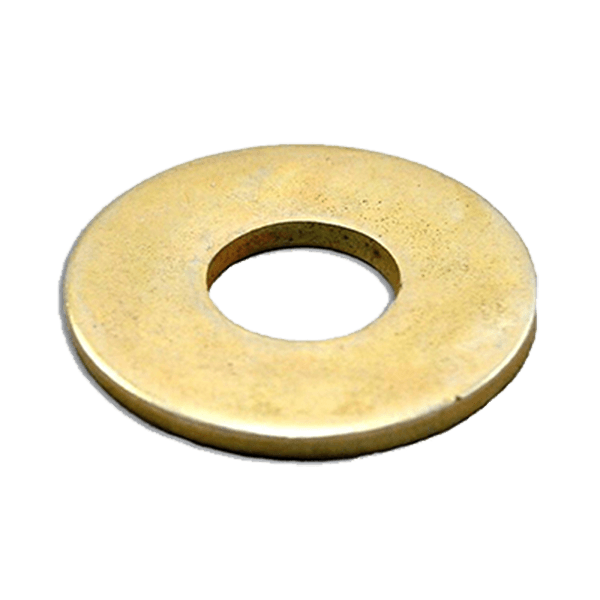

USS Through Hard Washer

Technical specifications

  • Materials: 50#/45#/40Cr
  • Finish: Zinc Plated/Black/Hot dip galvanized
  • Size: 1/4-1-1/2



FEATURES



USS Through Hard Washer

Description:



Size d dc h per 1000 units
  Min Max min max min max kg
1/4 7.80 8.31 18.47 19.02 1.30 2.03 3.09
5/16 9.40 9.91 22.05 22.99 1.63 2.64 5.79
3/8 11.00 11.51 25.22 26.16 1.63 2.64 7.41
7/16 12.57 13.08 31.57 32.51 1.63 2.64 11.83
1/2 14.15 14.66 34.75 35.69 2.18 3.35 18.32
9/16 15.75 16.26 37.13 38.07 2.18 3.35 20.51
5/8 16.48 17.45 44.27 45.21 2.74 4.06 37.19
3/4 20.45 21.39 50.62 51.56 3.10 4.50 52.46
7/8 23.65 24.59 56.97 57.91 3.45 4.88 71.77
1 26.80 27.74 63.32 64.26 3.45 4.88 87.62
1-1/8 31.57 32.51 69.67 70.61 3.45 4.88 102.45
1-1/4 34.75 35.69 76.02 76.96 3.45 4.88 121.11
1-1/2 41.02 42.42 88.65 90.04 3.45 5.41 175.58
