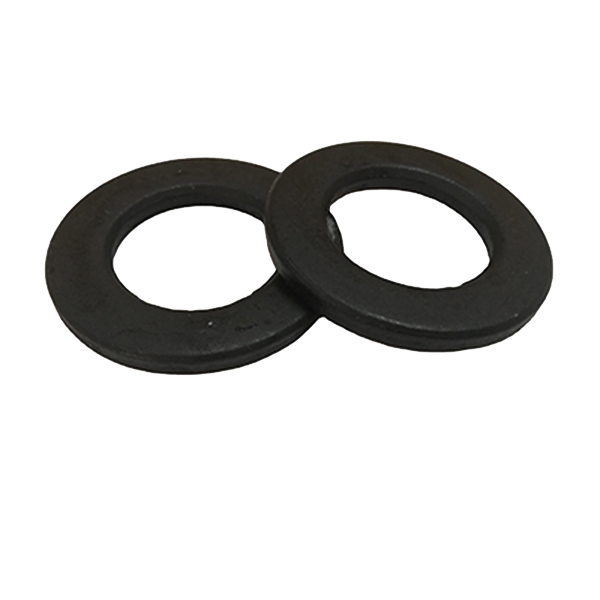

DIN 6916 Structural Washer

Technical specifications

  • Materials: 50#/45#/40Cr
  • Finish: Zinc Plated/Black/Hot dip galvanized
  • Size: M12-M36



FEATURES



DIN 6916 Structural Washer

Description:

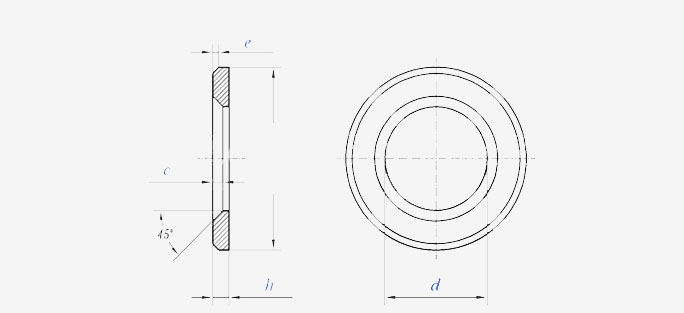

Size d dc h c e
  Min Max Max Min Baisc Max Min Min Max
M12 13 13.27 24 23.48 3 3.3 2.7 1.6 1.9 0.5
M16 17 17.27 30 29.48 4 4.3 3.7 1.6 1.9 1
M20 21 21.33 37 36.38 4 4.3 3.7 2 2.5 1
M22 23 23.33 39 38.38 4 4.3 3.7 2 2.5 1
M24 25 25.33 44 43.38 4 4.3 3.7 2 2.5 1
M27 28 28.52 50 49 5 5.6 4.4 2.5 3 1
M30 31 31.62 56 54.8 5 5.6 4.4 2.5 3 1
M36 37 37.62 66 64.8 6 6.6 5.4 3 3.5 1.5
