EN 14399 -9 HB washer

Technical specifications

  • Materials: 65MN/45#/40Cr
  • Finish: Zinc Plated/Black/Hot dip galvanized
  • Size: M12-M36



FEATURES

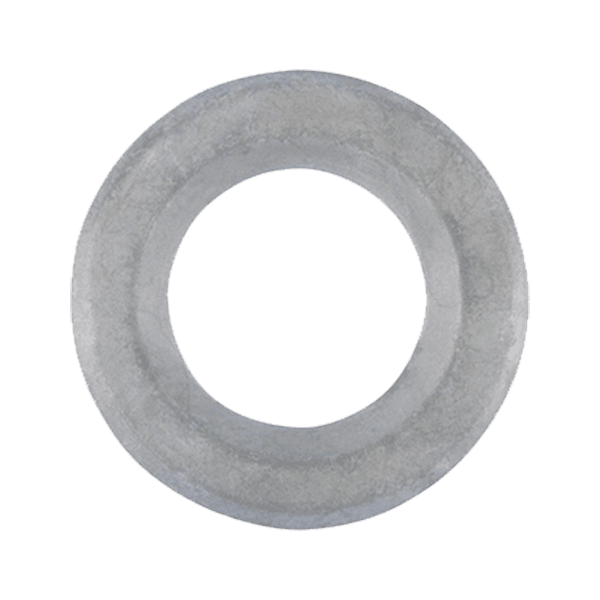

EN 14399 -9 HB washer

Description:



Size d dc h c e
  Min Max Min Max Min Max Min Max Min Max
M12 13 13.27 23.48 24 2.7 3.3 1.6 1.9 0.5 1
M16 17 17.27 29.48 30 3.7 4.3 1.6 1.9 0.75 1.5
M20 21 21.33 36.38 37 3.7 4.3 2 2.5 0.75 1.5
M22 23 23.33 38.38 39 3.7 4.3 2 2.5 0.75 1.5
M24 25 25.33 43.38 44 3.7 4.3 2 2.5 0.75 1.5
M27 28 28.52 49 50 4.4 5.6 2.5 3 1 2
M30 31 31.62 54.8 56 4.4 5.6 2.5 3 1 2
M36 37 37.62 64.8 66 5.4 6.6 2.5 3 1.25 2.5
