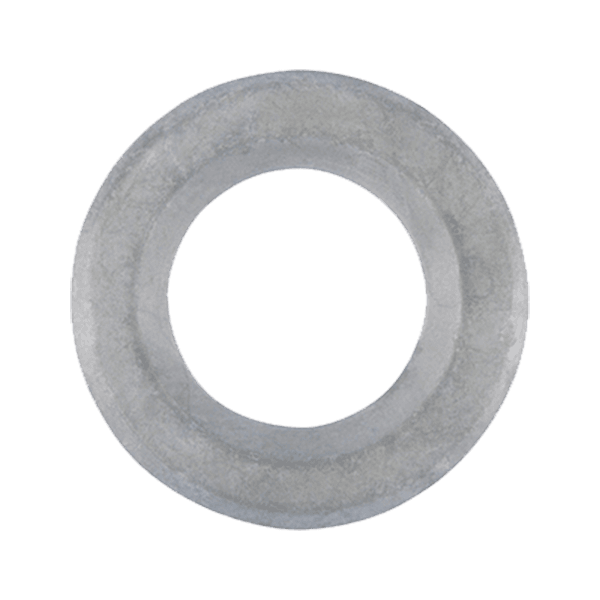

EN14399-6 Structural Washer

Technical specifications

  • Materials: 65MN/45#/40Cr
  • Finish: Zinc Plated/Black/Hot dip galvanized
  • Size: M12-M36



FEATURES



EN14399-6 Structural Washer

Description:



Size d dc h e c
  Min Max Min Max Baisc Min Max Min Max Min Max
M12 13 13.27 23.48 24 3 2.7 3.3 0.5 1 1.6 1.9
(M14) 15 15.27 27.48 28 3 2.7 3.3 0.5 1 1.6 1.9
M16 17 17.27 29.48 30 4 3.7 4.3 0.75 1.5 1.6 1.9
(M18) 19 19.33 33.38 34 4 3.7 4.3 0.75 1.5 2 2.5
M20 21 21.33 36.38 37 4 3.7 4.3 0.75 1.5 2 2.5
M22 23 23.33 38.38 39 4 3.7 4.3 0.75 1.5 2 2.5
M24 25 25.33 43.38 44 4 3.7 4.3 0.75 1.5 2 2.5
M27 28 28.52 49 50 5 4.4 5.6 1 2 2.5 3
M30 31 31.62 54.80 56 5 4.4 5.6 1 2 2.5 3
M36 37 37.62 64.80 66 6 5.4 6.6 1.25 2.5 2.5 3
