Clamps CS-1100

DEFAULT SPECIFICATIONS

  • Electrical Mechanical Tubing Clamps come in Electro-Galvanized (EZN) finish.
  • Other finishes available upon request.
  • When ordering specify figure number and O.D. size.



FEATURES

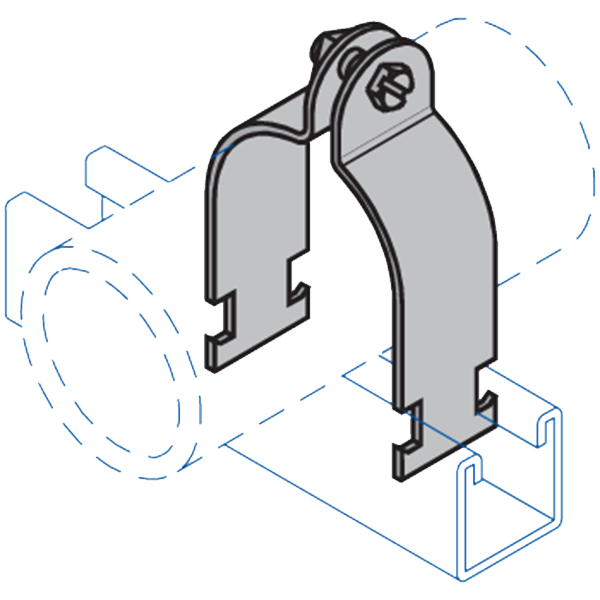

CS-1100 Pipe Clamps are all manufactured to fit into the standard openings of 1-5/8" channel to support runs of piping where desired, to secure the pipe in place.

Clamps CS-1100

Description:

Size Stock Thickness Hang Load Rating/Ibs Wt./100pcs
3/8" .060 400 10
1/2" .060 400 11
3/4" .075 600 15
1" .075 600 17
1 1/4" .075 600 19
1 1/2" .105 800 29
2" .105 800 34
2 1/2" .105 800 40
3" .105 800 47
3 1/2" .125 1000 62
4" .125 1000 67
5" .125 1000 80
6" .135 1000 102
8" .135 1000 130
10" .135 1000 143
12" .135 1000 174
