Clamps CS-1107

DEFAULT SPECIFICATIONS

  • Parallel Pipe Clamps come in Electro-Galvanized (EZN) finish.
  • Other finishes available upon request.
  • When ordering specify figure number and O.D. size.



FEATURES

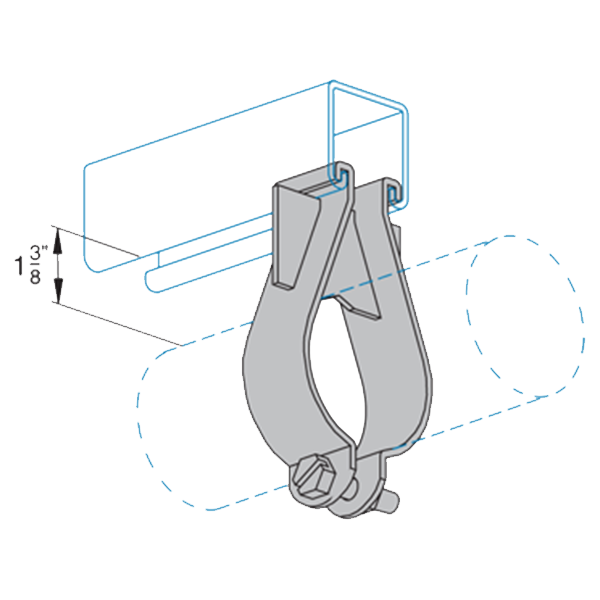

CS-1107 Parallel Pipe Clamps are all manufactured to fit into the standard openings of 1-5/8" channel to support runs of piping where desired, to secure the pipe in place.

Clamps CS-1107

Description:

Pipe Size Load Rating per 100 units
3/8" 300 27
1/2" 300 29
3/4" 300 30
1" 400 31
1 1/4" 400 38
1 1/2" 500 40
2" 500 47
2 1/2" 500 66
3" 500 78
3 1/2" 500 87
4" 500 90
