General Fittings CS-605

Use with:

  • 1-5/8" x 1-5/8" 12-ga. Channel – H-132
  • 1-5/8" x 1-5/8" 14-ga. Channel – H-134



FEATURES

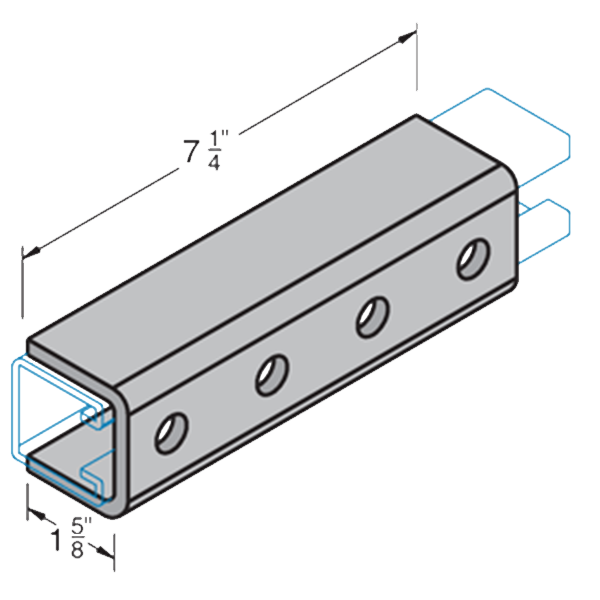

CS-605 General Fittings are designed to fit with all 1-5/8" wide channels. All fittings are manufactured from 1/4" thick carbon steel, 1-5/8" wide, all holes are 9/16" diameter, spaced 1-7/8" on center and 13/16" from the end.

General Fittings CS-605

Description:

Part NO. A For Use With per 100 units
CS 616 1 9/16" CS 200,CS 210 265
CS 646 1 3/16" CS 500,CS 560 176
CS 616-100 3 3/16" CS 100 390
CS 616-150 2 3/8" CS 150 390
