Hex Jam Nuts

DEFAULT SPECIFICATIONS

Brand HJ Tech
Standard ASME B18.2.2
Material Q195/SAE1035/10b21/40cr/SS304/SS316
Finish Zinc/Black/Dacromet/Magni  /Geomet/Zintek/Delta
Size 1/4-3







Hex Jam Nuts

Description:

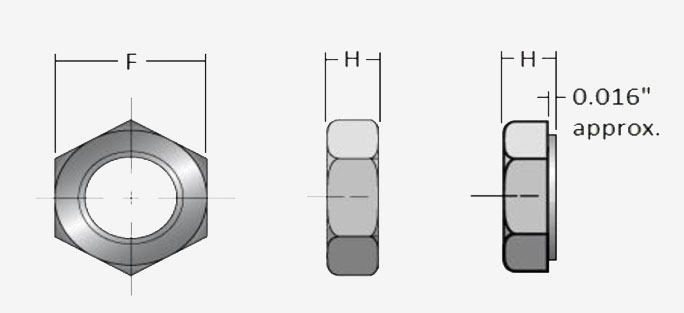

Thread Size F H
pitch max min max min
1/4 .438 .428 .163 .150
5/16 .500 .489 .195 .180
3/8 .563 .551 .227 .210
7/16 .688 .675 .260 .240
1/2 .750 .736 .323 .302
9/16 .875 .861 .324 .301
5/8 .938 .922 .387 .363
3/4 1.125 1.088 .446 .398
7/8 1.312 1.269 .510 .458
1 1.500 1.450 .575 .519
1 1/8 1.688 1.631 .639 .579
1 1/4 1.875 1.812 .751 .687
1 3/8 2.062 1.994 .815 .747
1 1/2 2.250 2.175 .880 .808
1 5/8 2.437 2.356 .944 .868
1 3/4 2.625 2.538 1.009 .929
1 7/8 2.812 2.719 1.073 .989
2 3.000 2.900 1.138 1.050
2 1/4 3.375 3.263 1.267 1.155
2 1/2 3.750 3.625 1.427 1.401
2 3/4 4.125 3.988 1.556 1.522
3 4.500 4.350 1.685 1.643
